65 Series Economical Exposed Frame Curtain Wall System - Reliable & Cost-Effective Façade Solution for Large-Scale Projects

65 Series Economical Exposed Frame Curtain Wall System - Reliable & Cost-Effective Façade Solution for Large-Scale Projects

Availability:

Quantity:



Inquire

Model:
65
Brand:
RODEO

Curtain Wall Curtain Wall System Exposed Frame Curtain Wall Exposed Mullion Curtain Wall 65mm Curtain Wall Aluminum Curtain Wall Reliable Curtain Wall Solution Economical Curtain Wall System Proven Curtain Wall Design Standardized Curtain Wall

Product Introduction

Introduction

Product Description

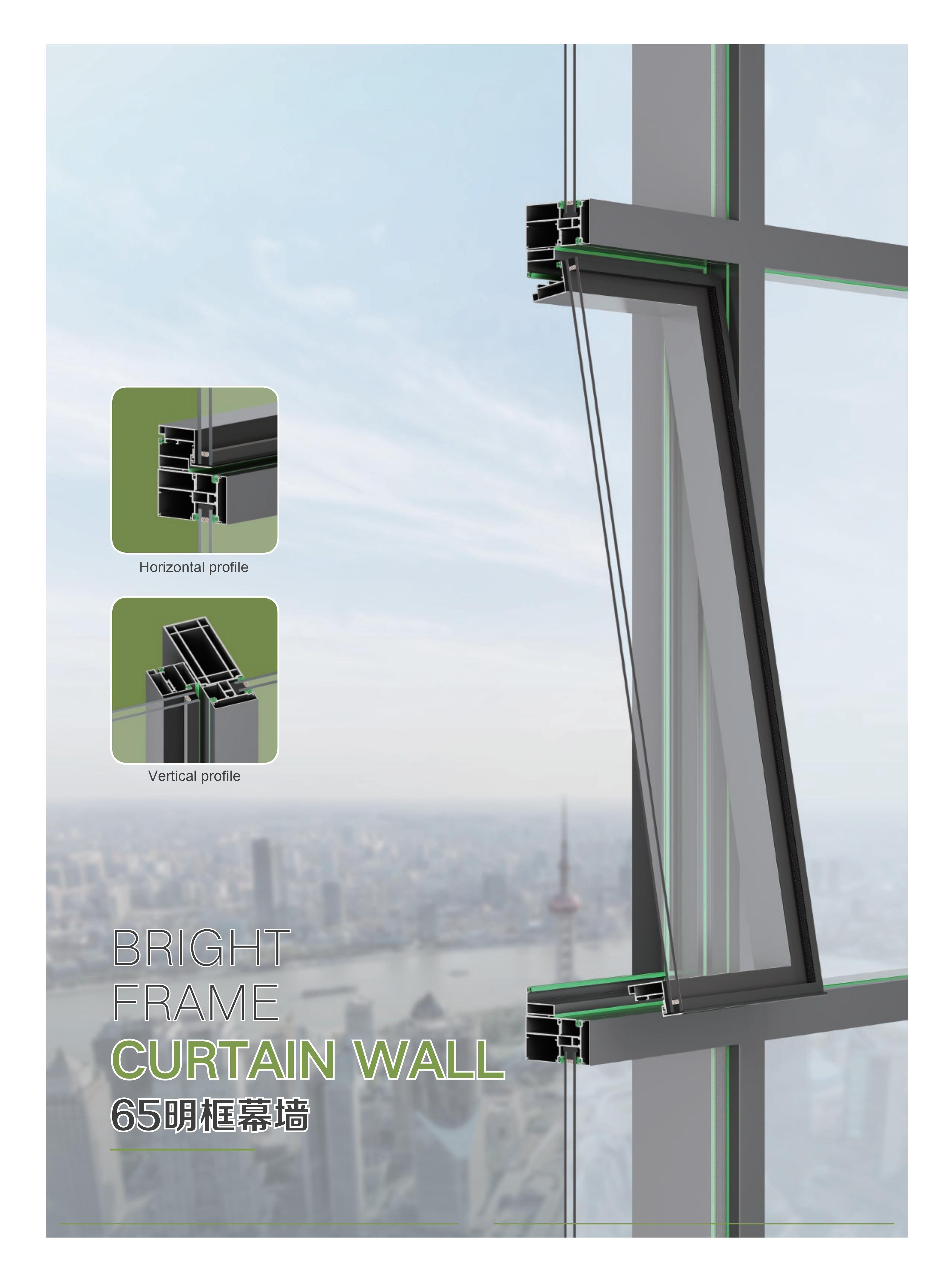

详情图1

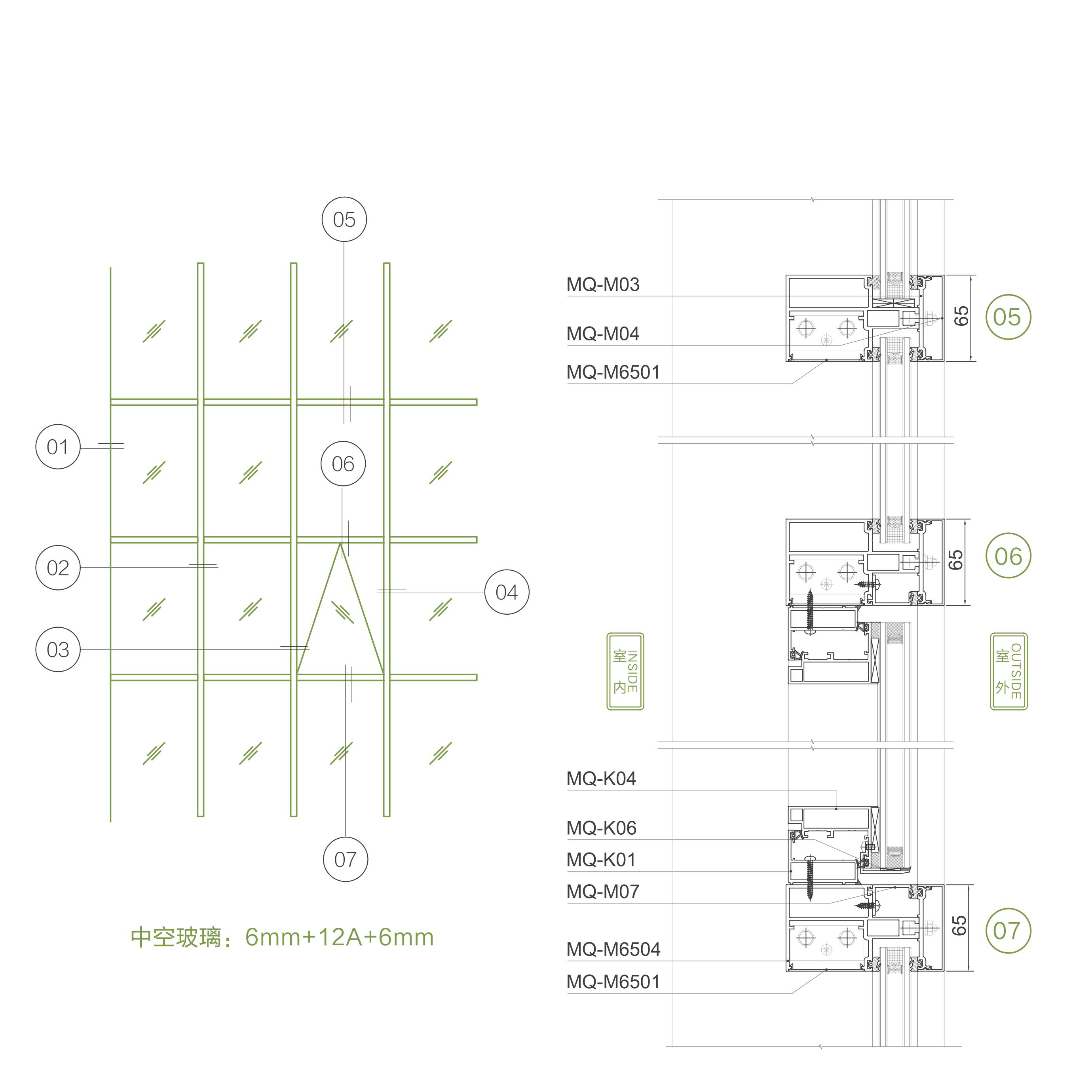

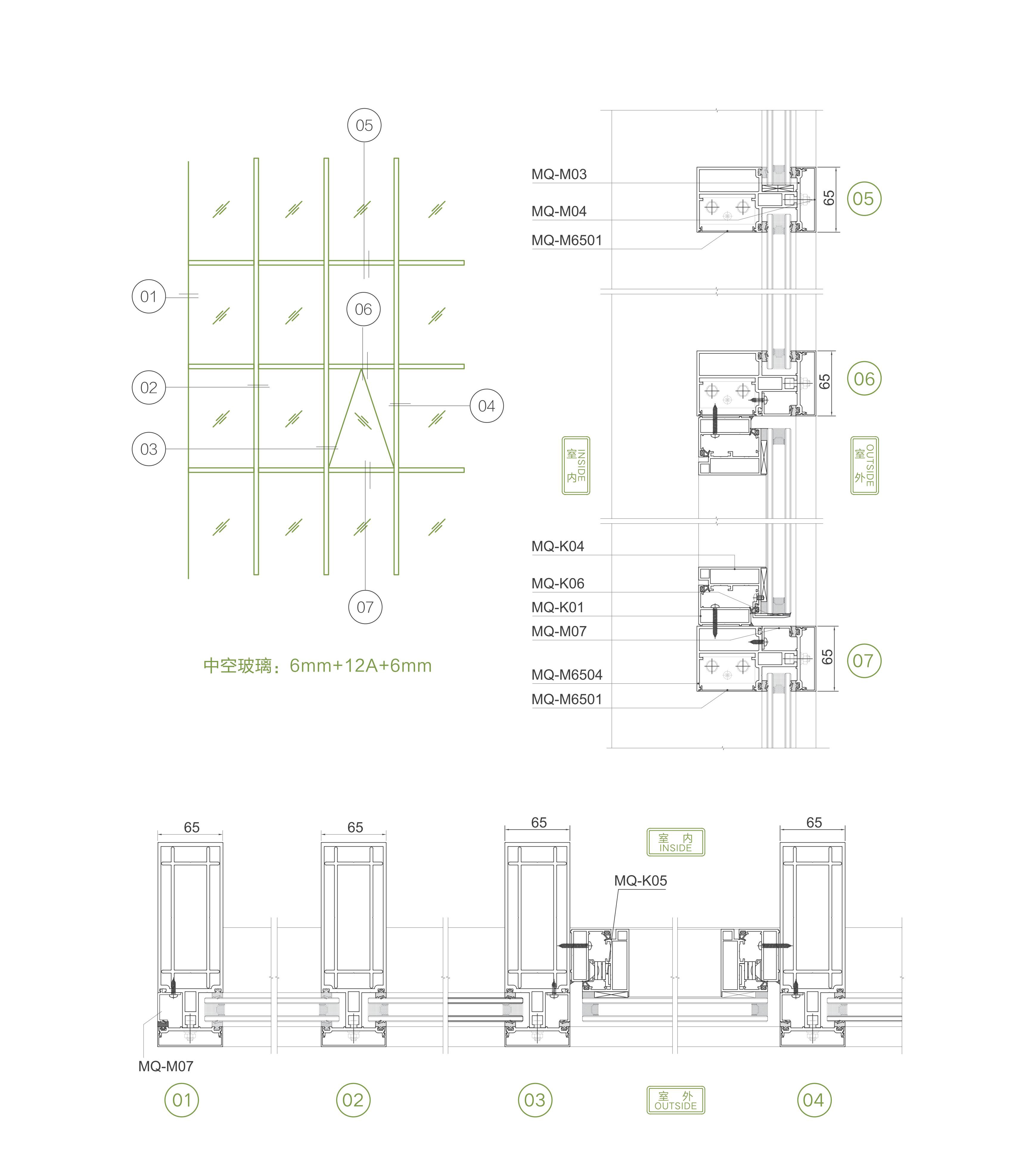

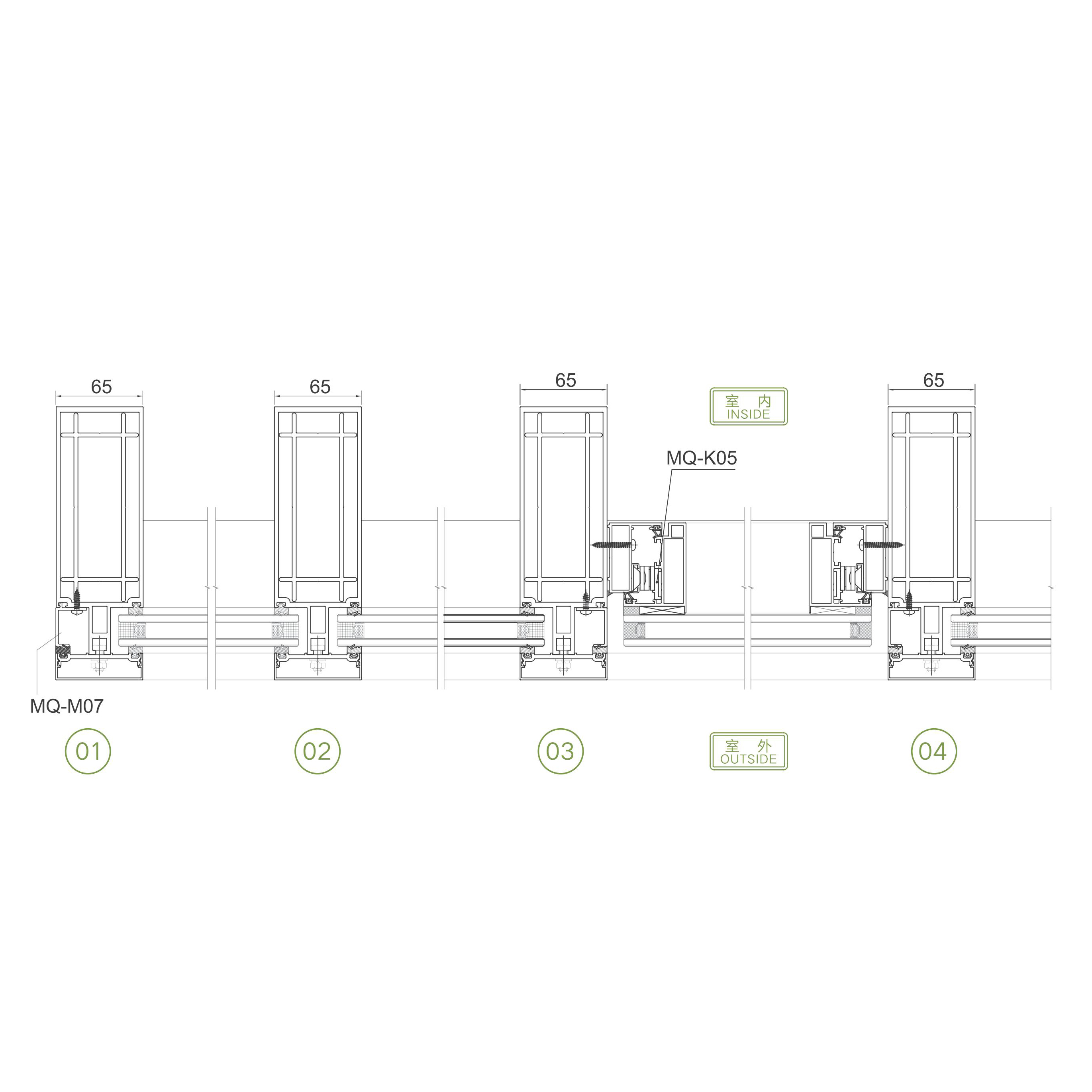

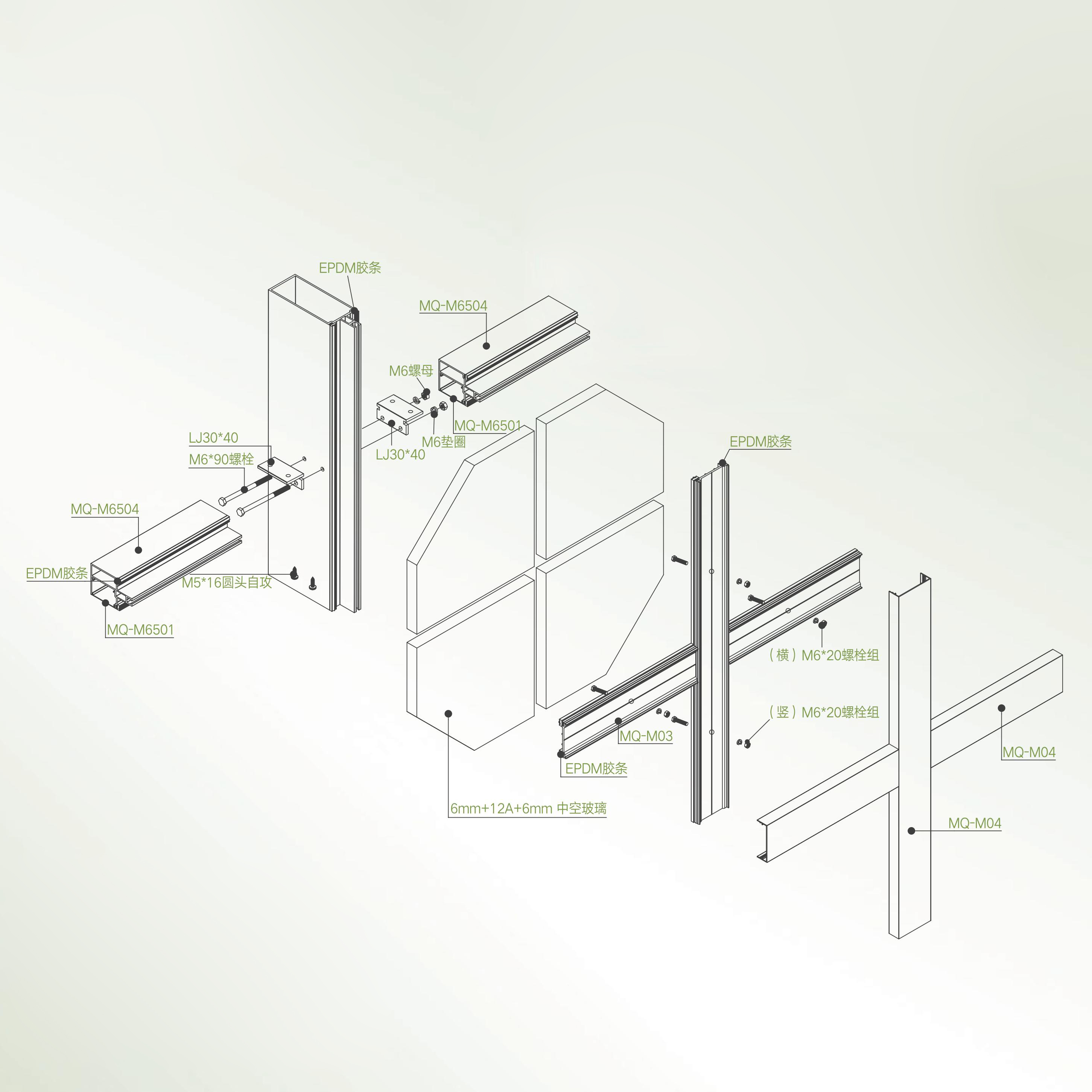

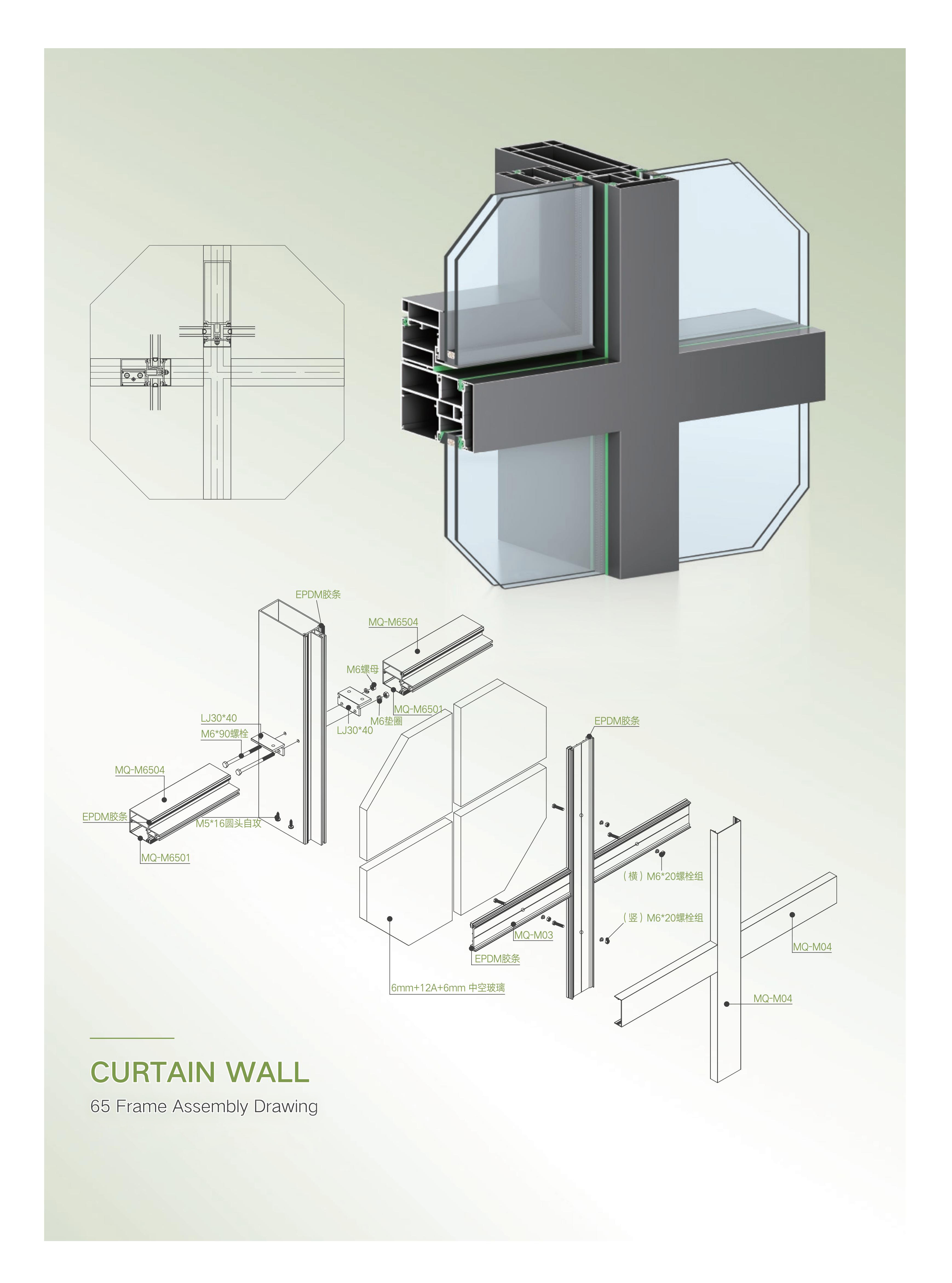

Assembly Drawing

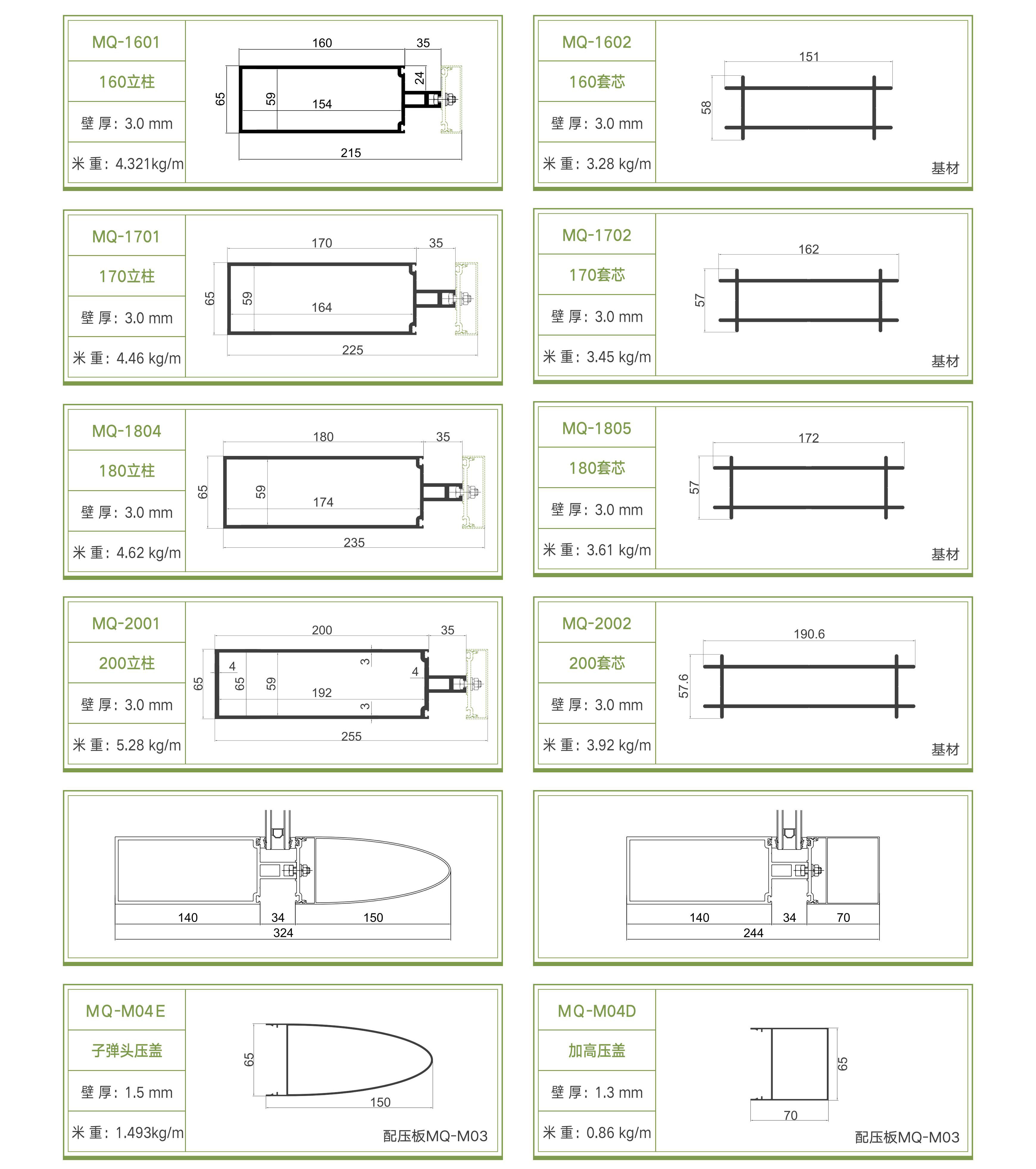

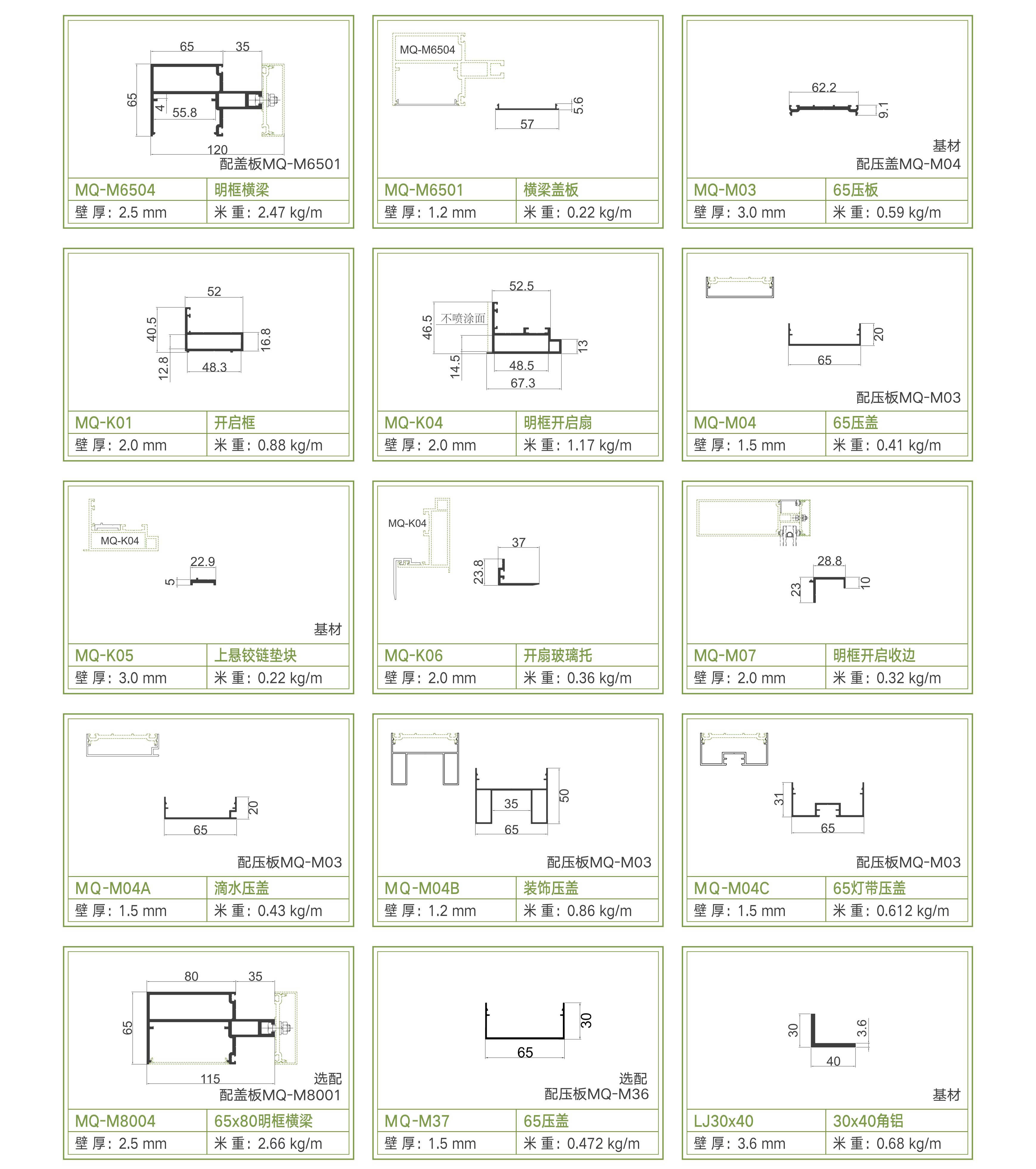

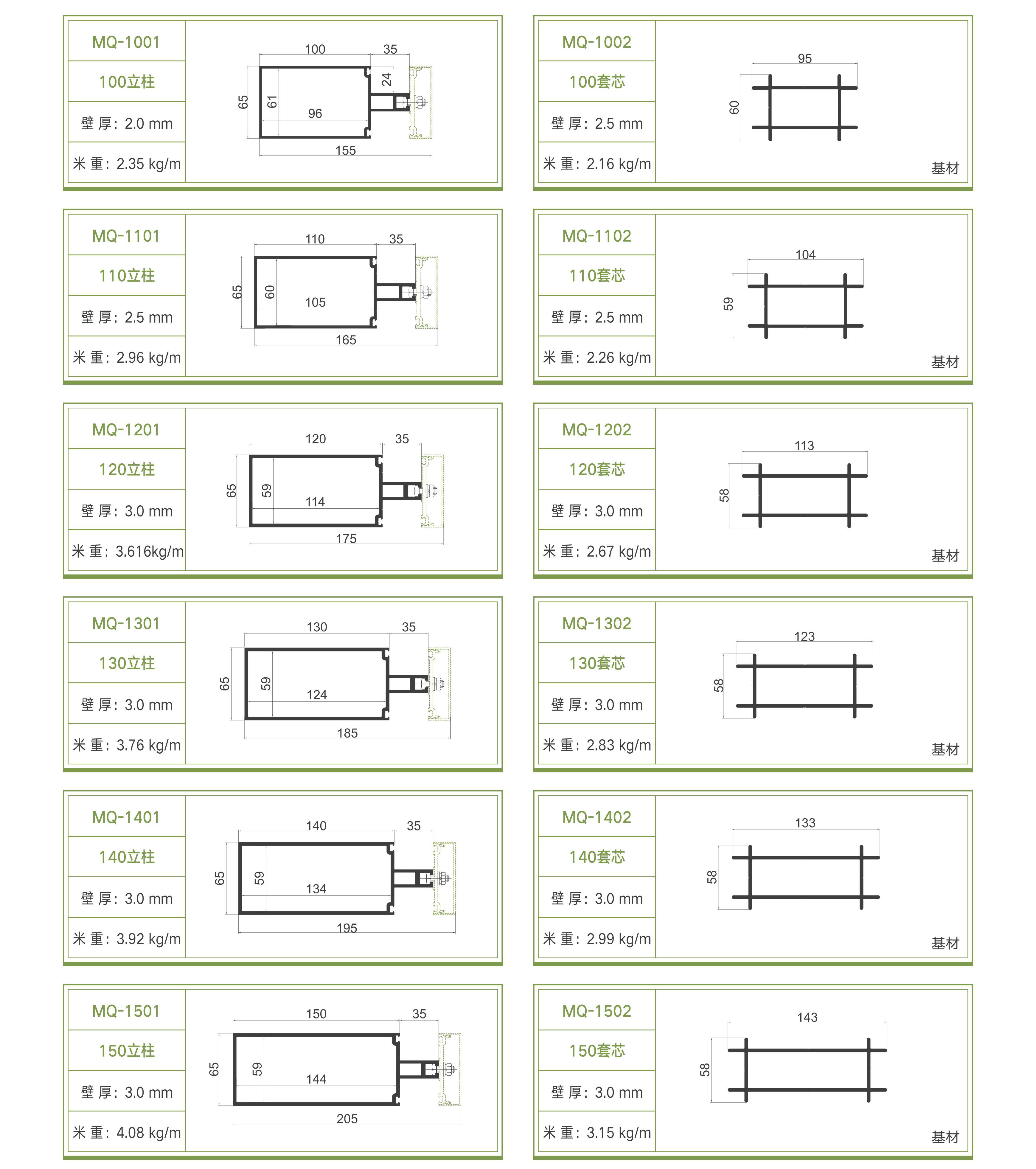

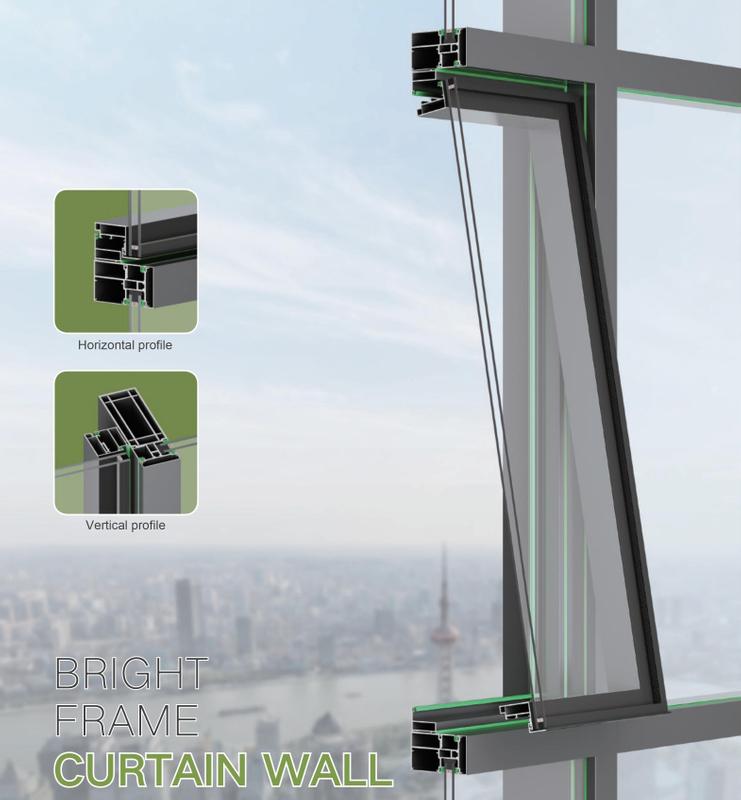

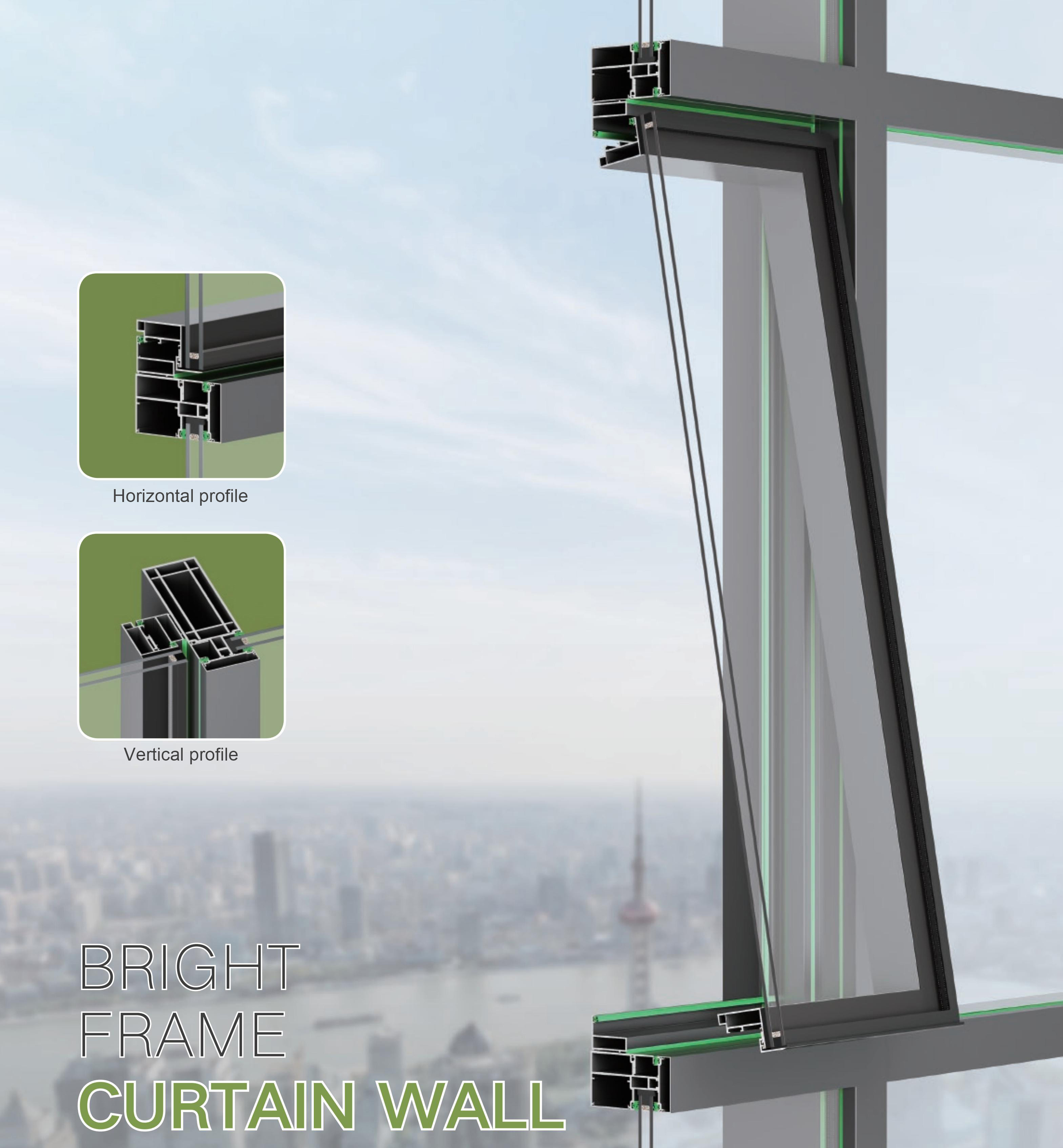

Profile Drawings

Technical Parameters

Name	65 Frame Curtain Wall Series
Type	Curtain Walls
Frame Material	Aluminum Alloy
Design Style	Modern
Application	Commercial Office Towers & High-rise Apartments Large-scale Residential Complexes & Hotels Educational & Institutional Buildings Facade Retrofitting of Existing Buildings

Product Advantage

Product Features

Proven Structural Strength & Versatility

The system offers a wide array of column sizes, allowing engineers to precisely select the profile that matches the specific wind load and structural requirements of each project section, from lower floors to penthouse levels.

Cost-Effective & Efficient Installation

As a mature and standardized bright frame system, it simplifies fabrication and on-site assembly. The clear connection details enable faster erection, reducing labor costs and project timelines—a critical factor for large-scale developments.

Durable & Maintenance-Friendly Design

The externally accessible pressure cap and gasket system allows for easy replacement of glass panels or sealing components if needed, without major disassembly of the framework, significantly lowering long-term maintenance costs.

Reliable Weather Performance

The multi-channel EPDM gasket system provides excellent defense against water penetration and air leakage. Combined with the insulating glass unit, it delivers consistent performance in waterproofing, thermal insulation, and acoustic insulation.

Product Uses

This system is the go-to choice for projects where proven reliability, budgetary control, and efficient construction pace are paramount. Its classic bright frame aesthetic conveys stability and professionalism.
