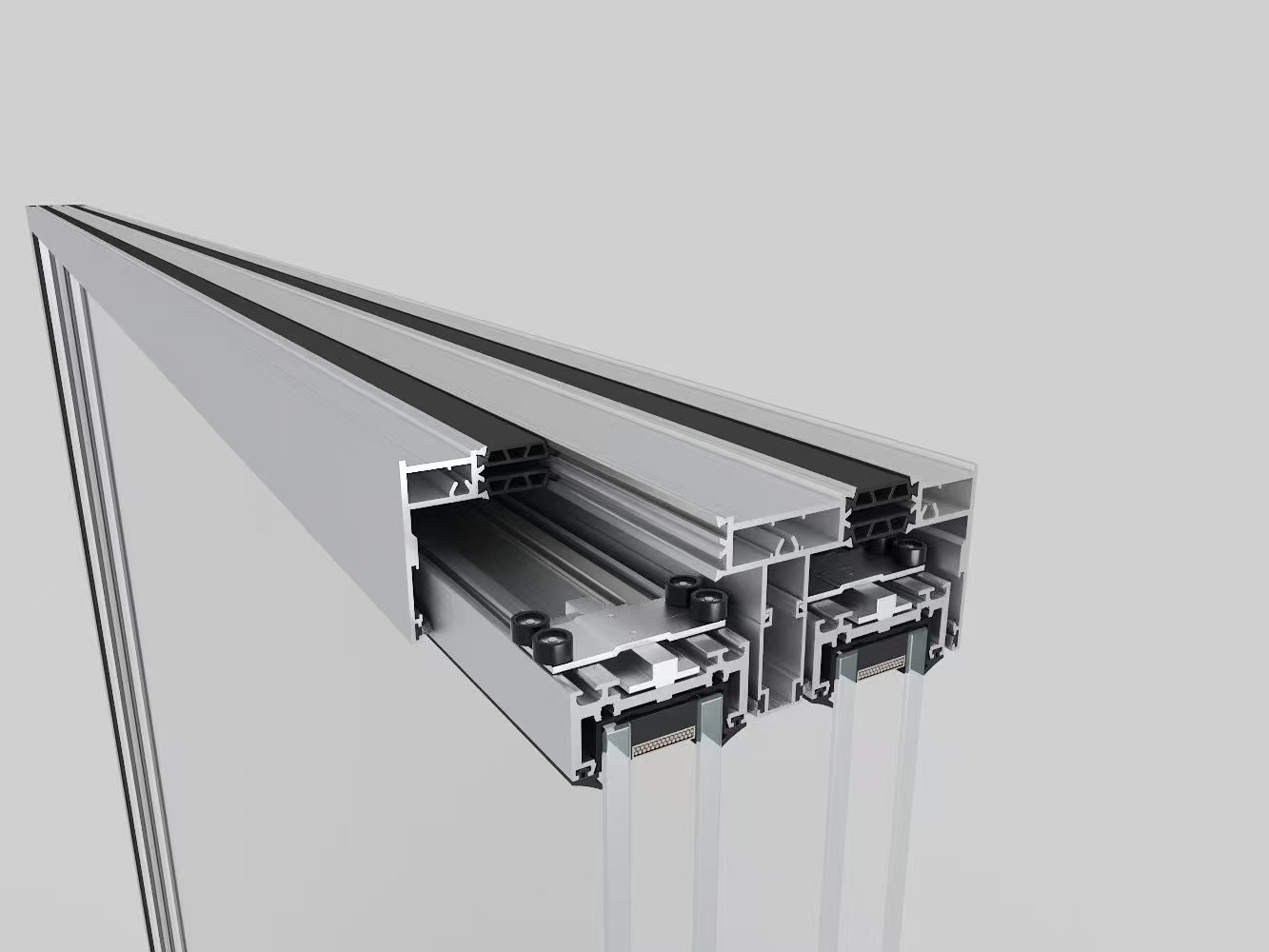

150 High-Performance Panoramic Door – 1800kg Capacity, Ultra-Narrow Frame for Luxury Villas & Hotels

Product Description

Introduction

Product Introduction

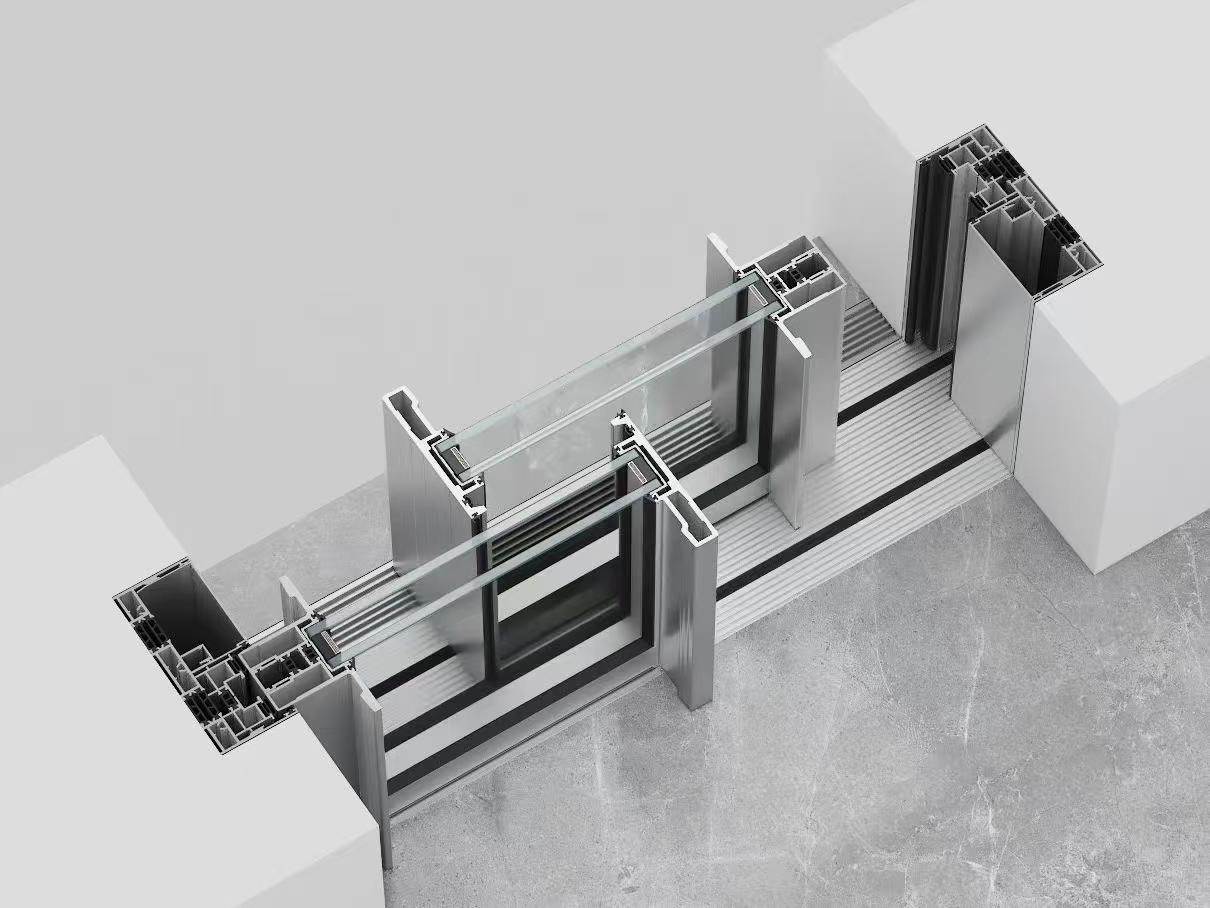

This is a high-performance, heavy-duty panoramic sliding door system built around a 150mm series profile. It is engineered to support extra-large, heavy glass panels with ease, offering both manual and motorized operation options. The system is characterized by its ultra-narrow sightlines, versatile track configurations (including low-track and marble-embedded options), and a comprehensive suite of components for flawless integration into any architectural style.

Technical Parameters

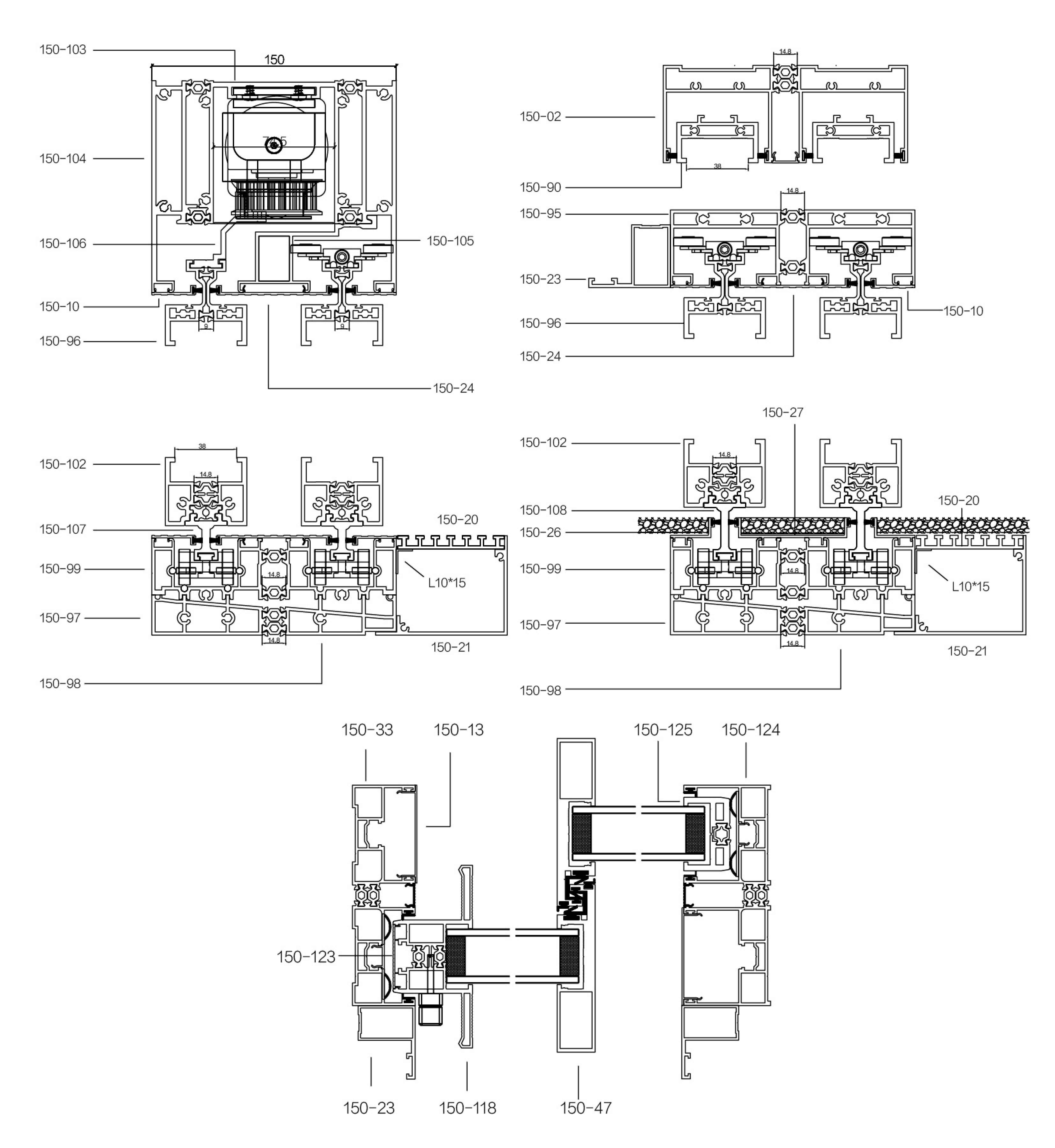

详情图1

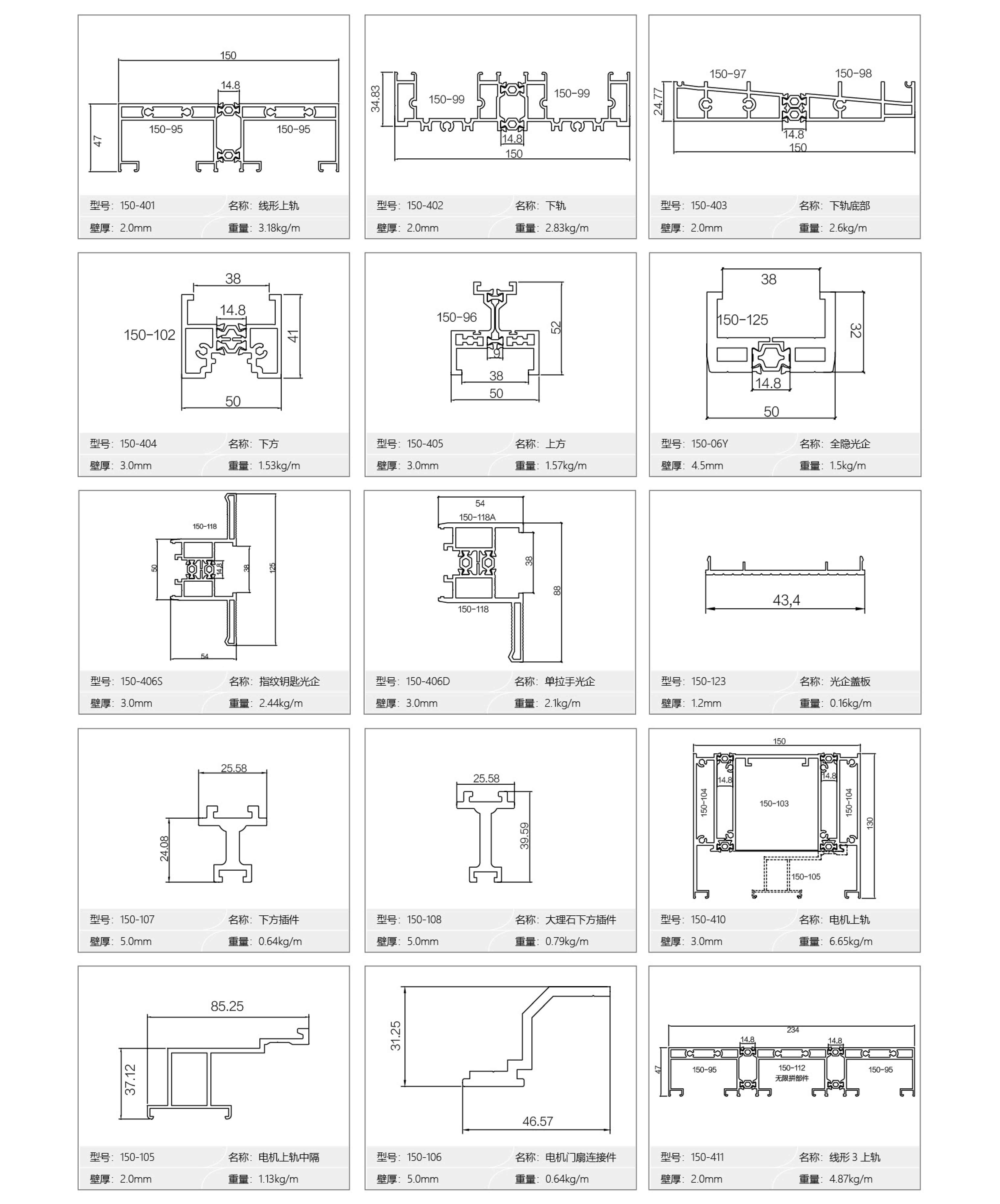

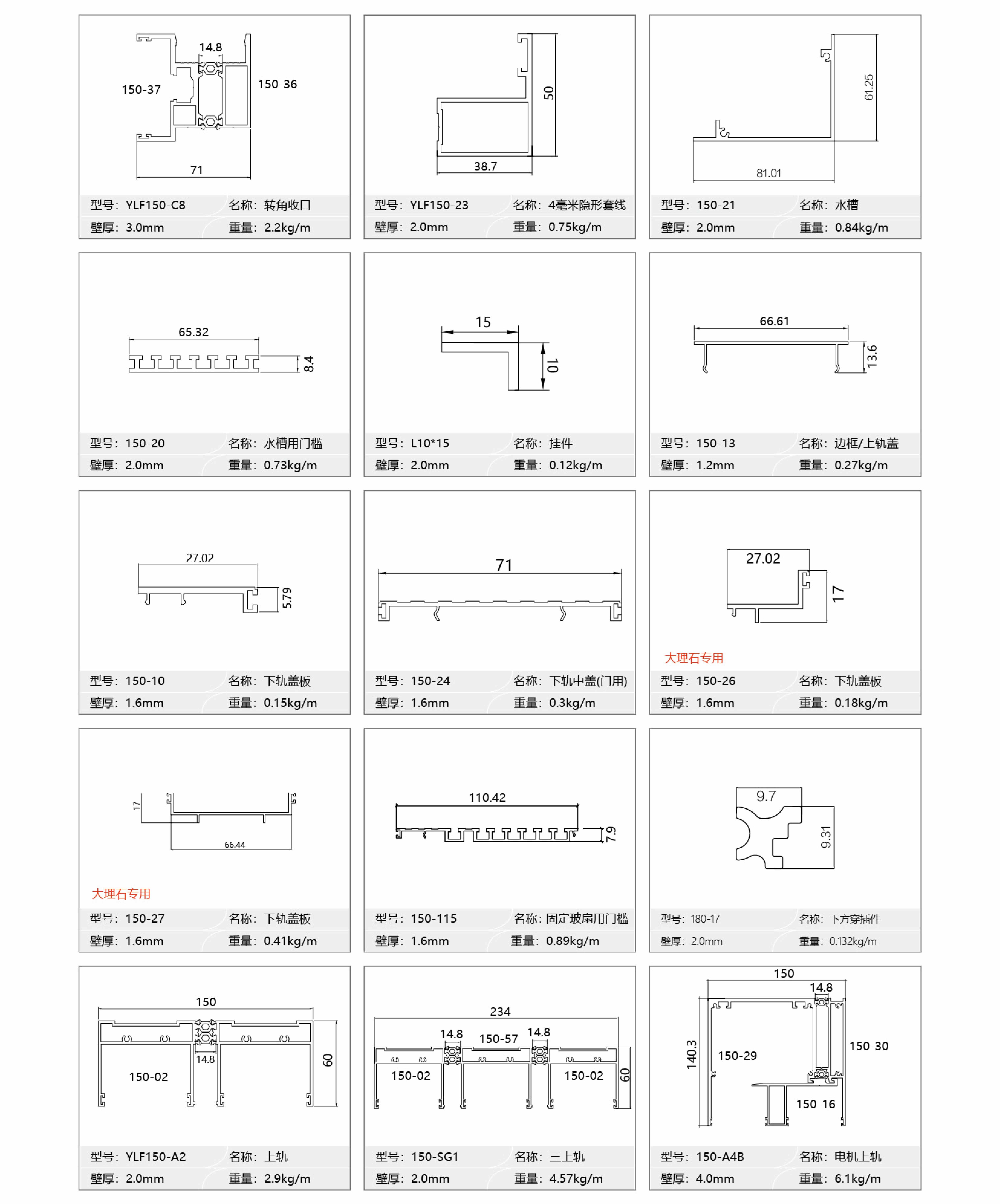

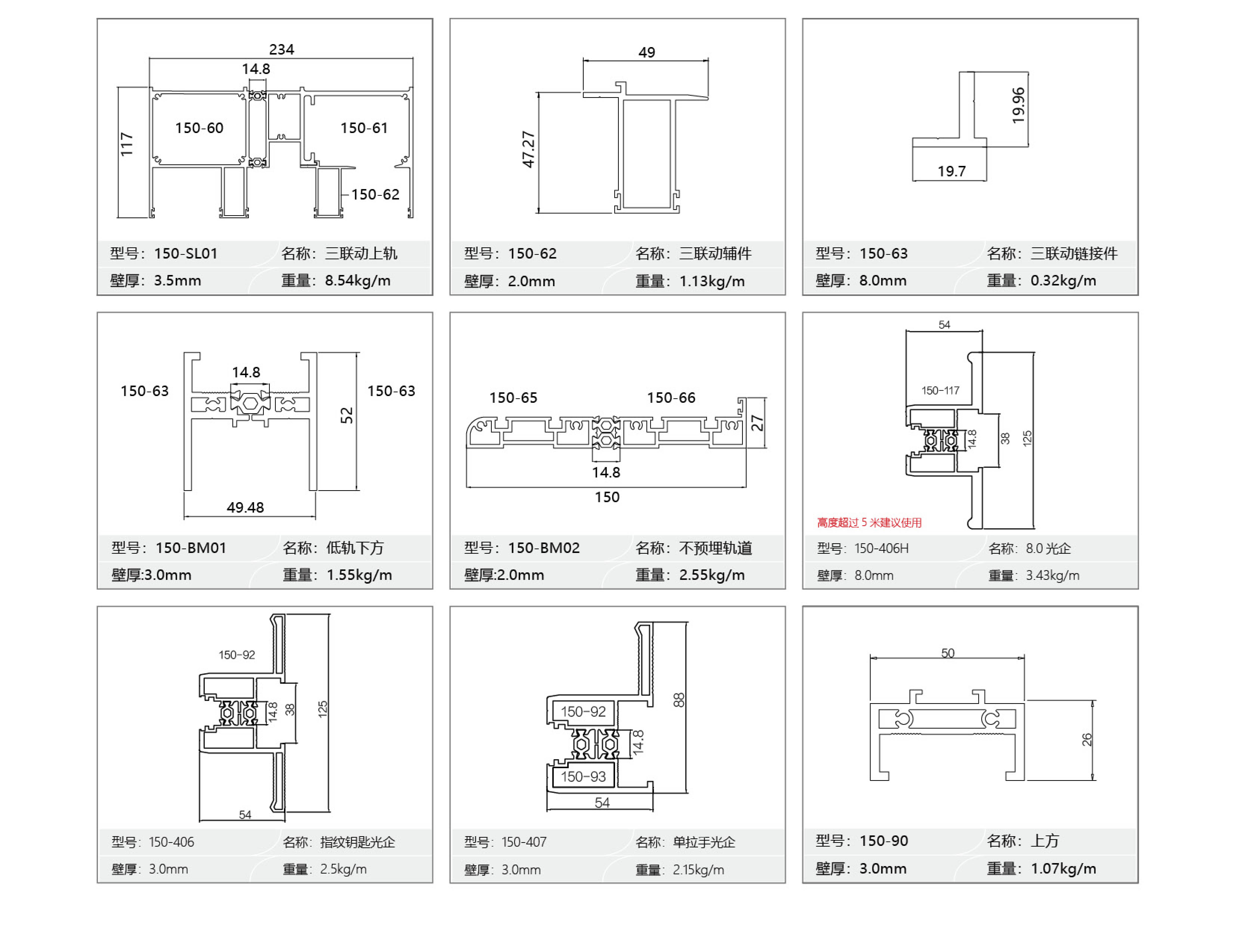

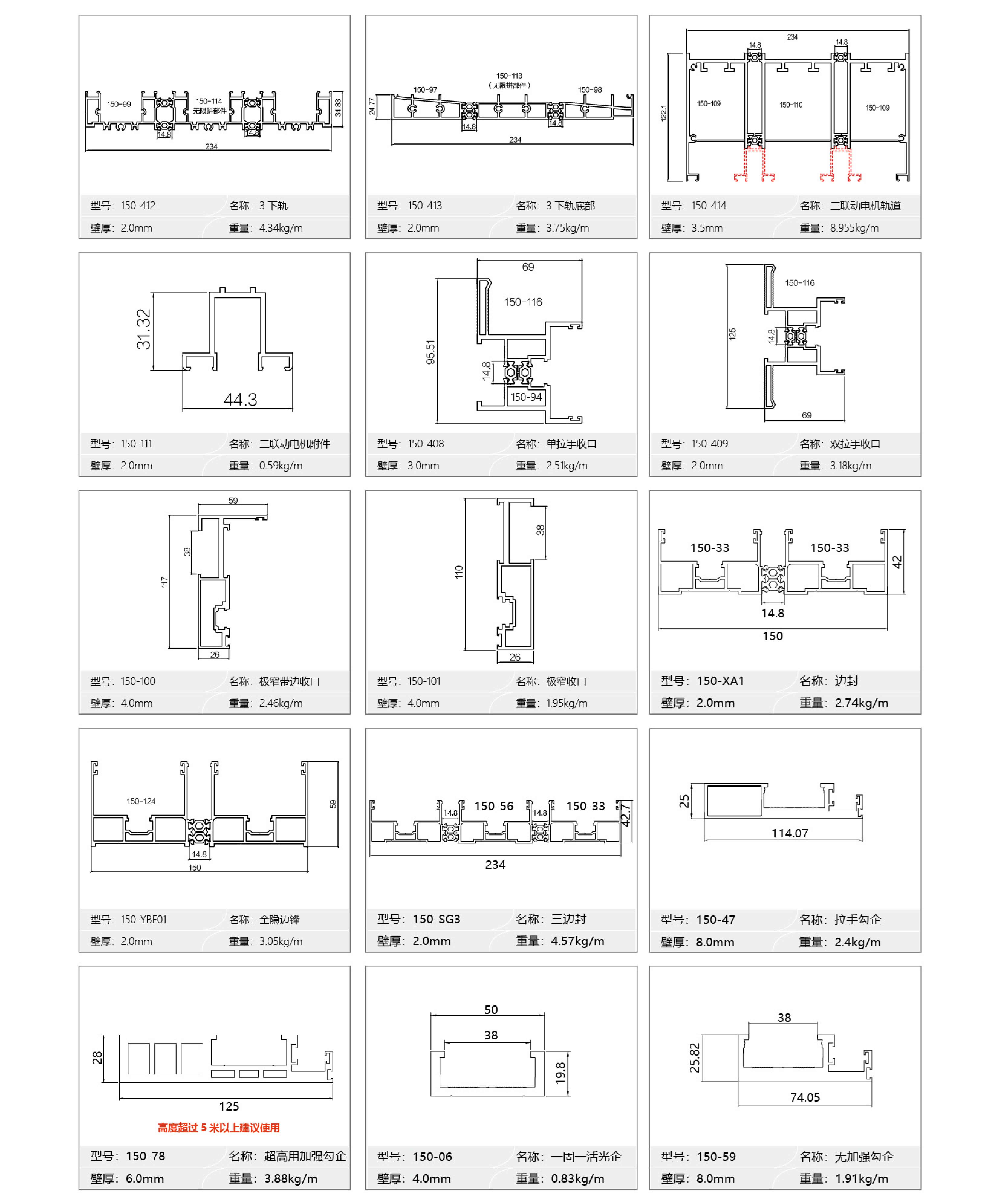

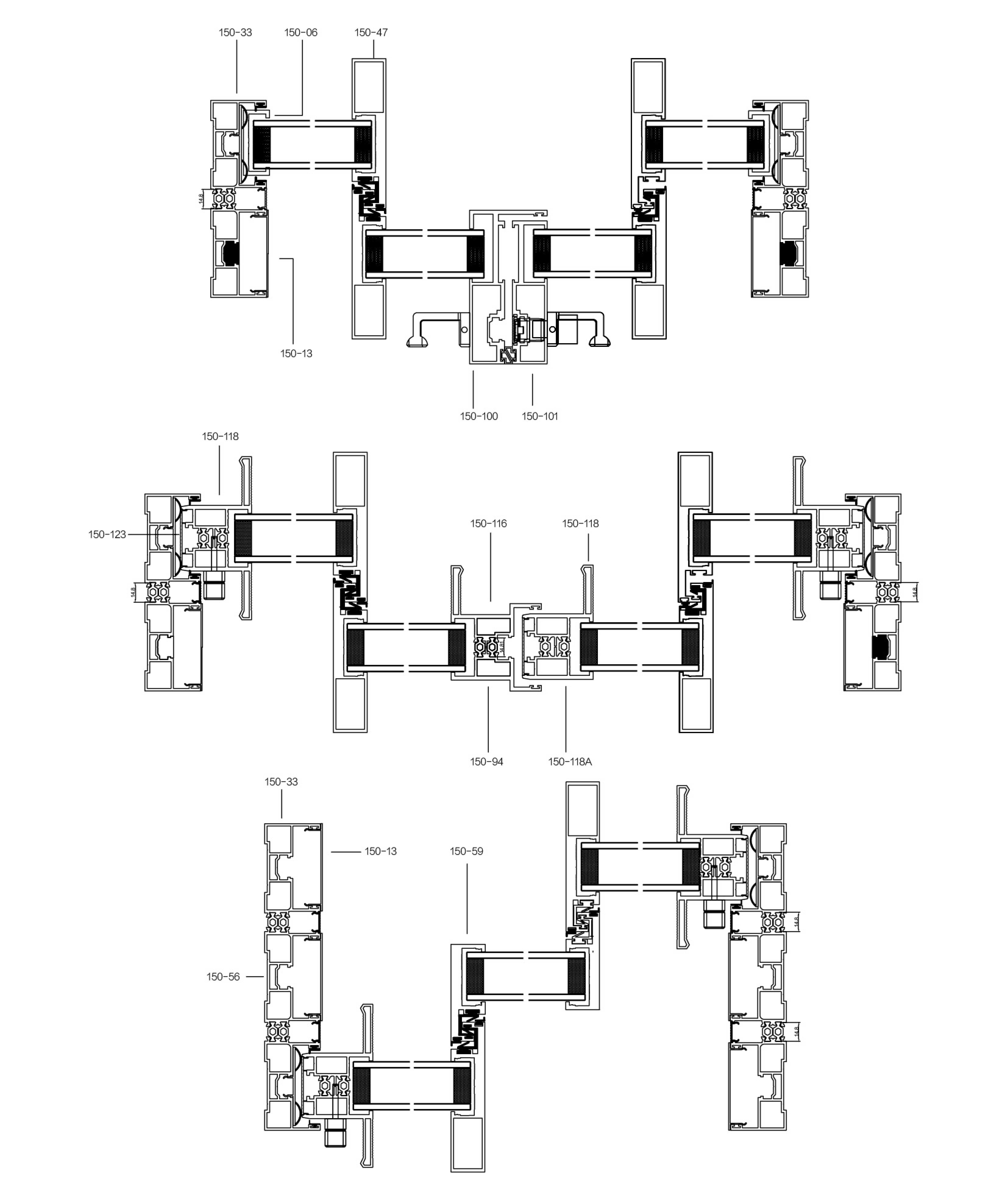

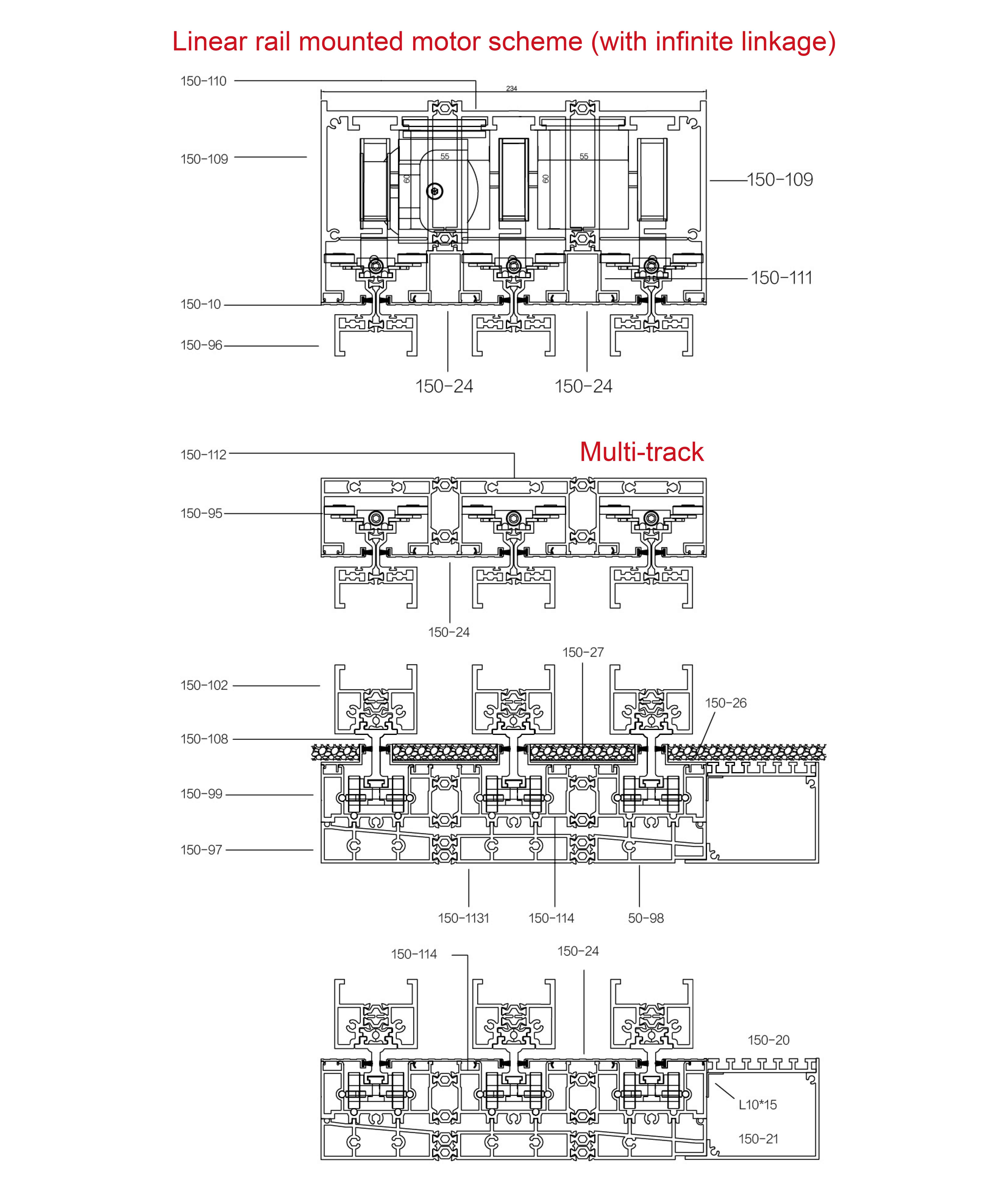

详情图2 详情图3 详情图4 详情图5 详情图6 详情图7

Technical Parameters

Model	150 Panoramic Sliding Door
Type	Aluminum Sliding Door
Frame Material	Aluminium Alloy
Temper	6063-T5
Design Style	Modern
Max Single Leaf Capacity	Up to 1800 kg per sliding leaf
Track Options	Linear Top Track, Multi-Link Motorized Track, Low Track, Marble Dedicated Track
Drainage System	Vertical inclined drainage at track bottom for efficient, complete water run-off.
Finish & Color	Standard colors: Fluorocarbon Star River Gray, Pearl Black, Mill Finish. Custom colors available.
Application Scenario	Luxury Villa & Penthouse Residences High-End Commercial Spaces & Showrooms Boutique Hotels & Resort Properties Modern Residential Projects with Floor-to-Ceiling Openings

Product Features

Unmatched Safety & Structural Integrity

Features a unique bottom-through-wall connection system that securely anchors the door to the building structure, offering superior resistance against extreme weather and physical stress. The use of high wall thickness profiles in critical stiles and sashes further guarantees long-term stability.
Extreme Load-Bearing Capacity

Equipped with a double-row, double-wing stainless steel roller system. This advanced hardware allows a single sliding leaf to carry up to 1800kg, enabling the use of oversized, high-performance glass with effortless smooth operation.
Superior Waterproofing & Sealing

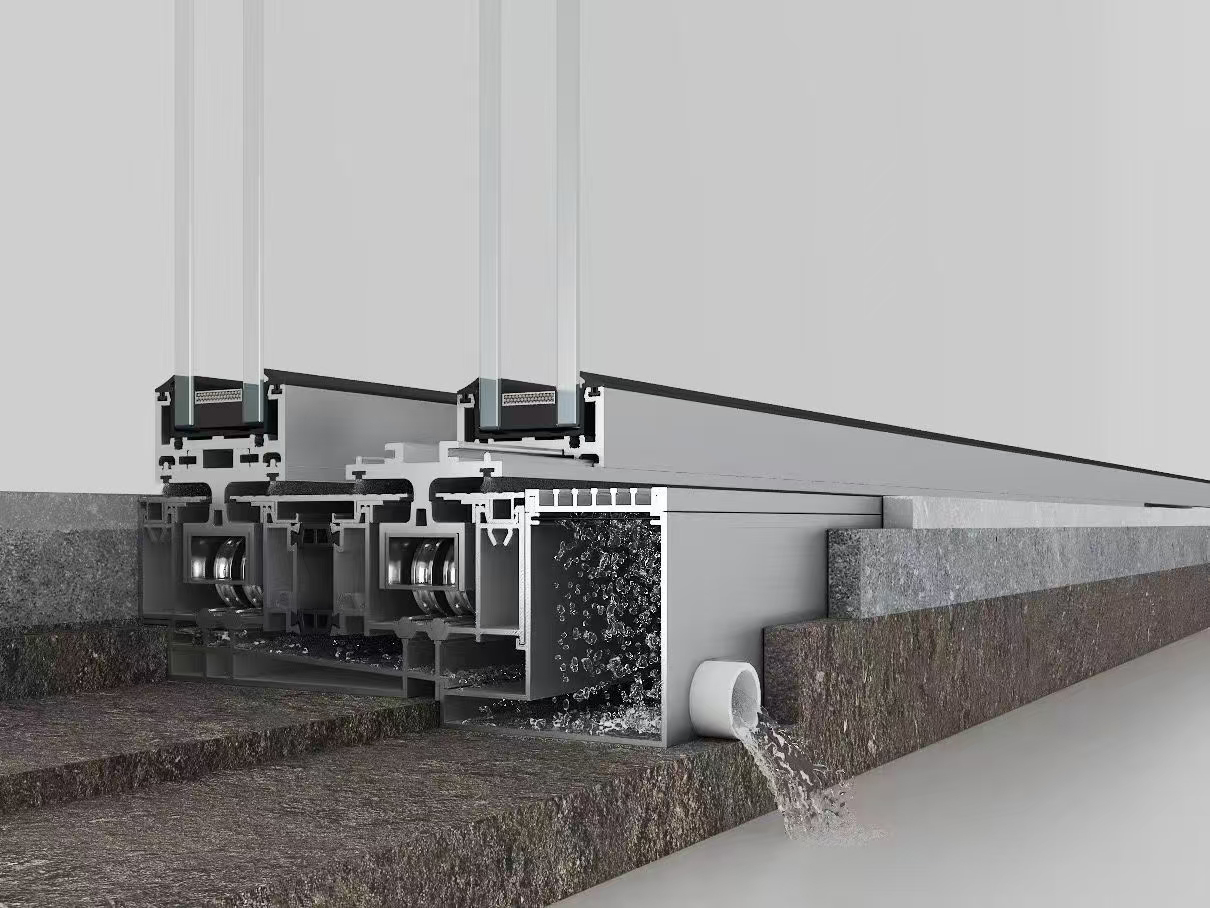

The linear design of the top track is not only aesthetically pleasing but also integrated with advanced sealing to block water ingress. Combined with the vertical inclined drainage channel in the bottom track, it ensures rapid and complete water evacuation, leaving no residue.
Sleek Aesthetics & Design Flexibility

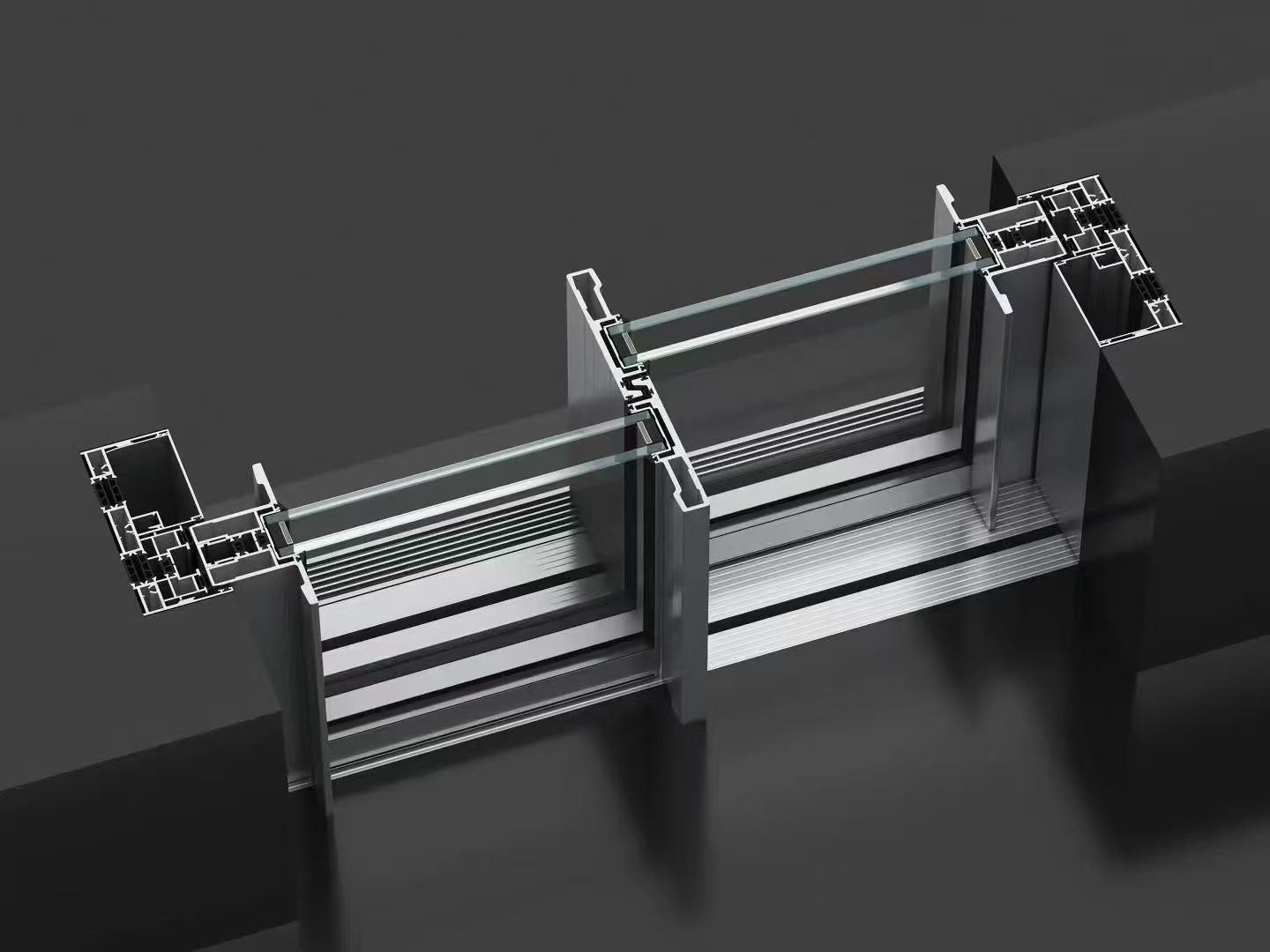

Boasts ultra-narrow sightlines and minimalistic frames that maximize glass area for a true "panoramic" view. It offers versatile low-track configurations suitable for any scenario (indoor/outdoor level access) and customizable track options for marble or other finishes.
Motorization & Multi-Link Flexibility

Supports unlimited multi-leaf linkage in motorized configurations, allowing for the creation of grand, seamless openings. Dedicated motorized tracks and accessories are designed for smooth, quiet, and reliable automated operation.
